AUFLEX SPS
The most economical way of bundling and joining cables

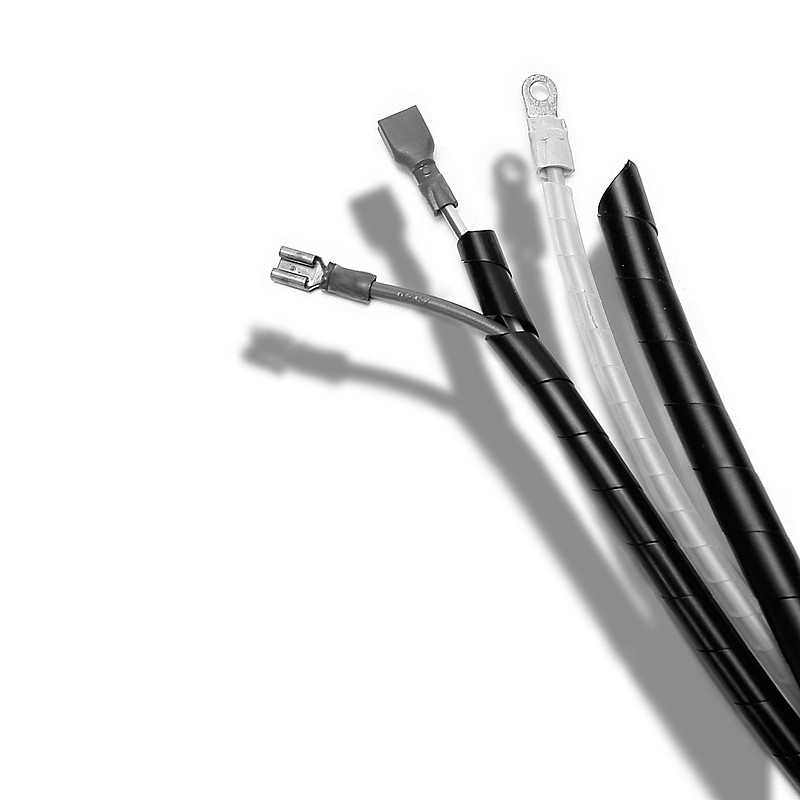

The most economical way of bundling and joining cables. The polyethylene sleeve curls in a spiral around the cable like a ribbon. Individual cables can branch off at any point along the sleeve.
The most economical way of bundling and joining cables. The polyethylene sleeve curls in a spiral around the cable like a ribbon. Individual cables can branch off at any point along the sleeve.

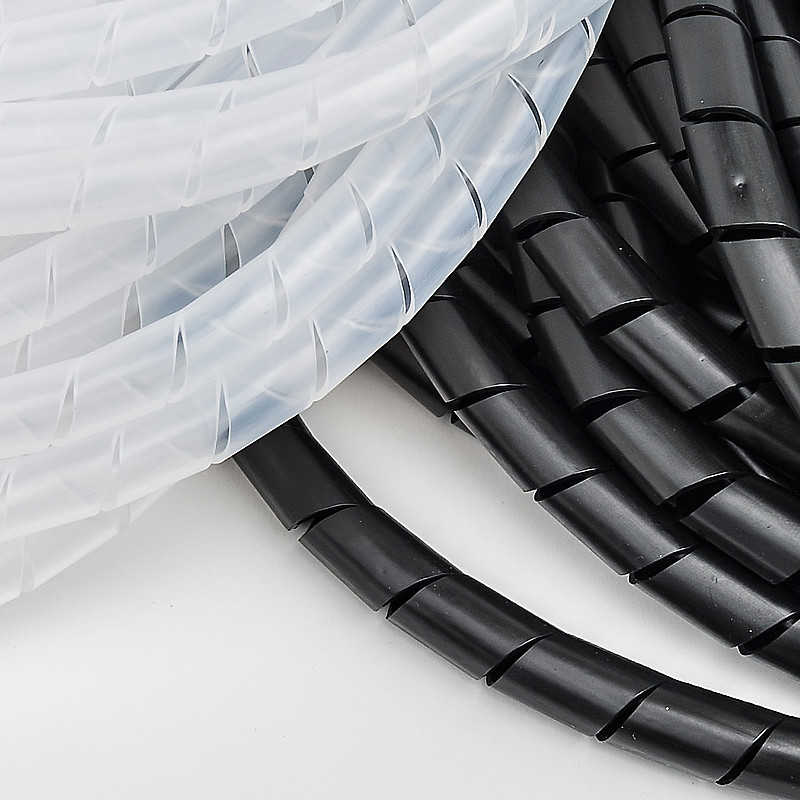

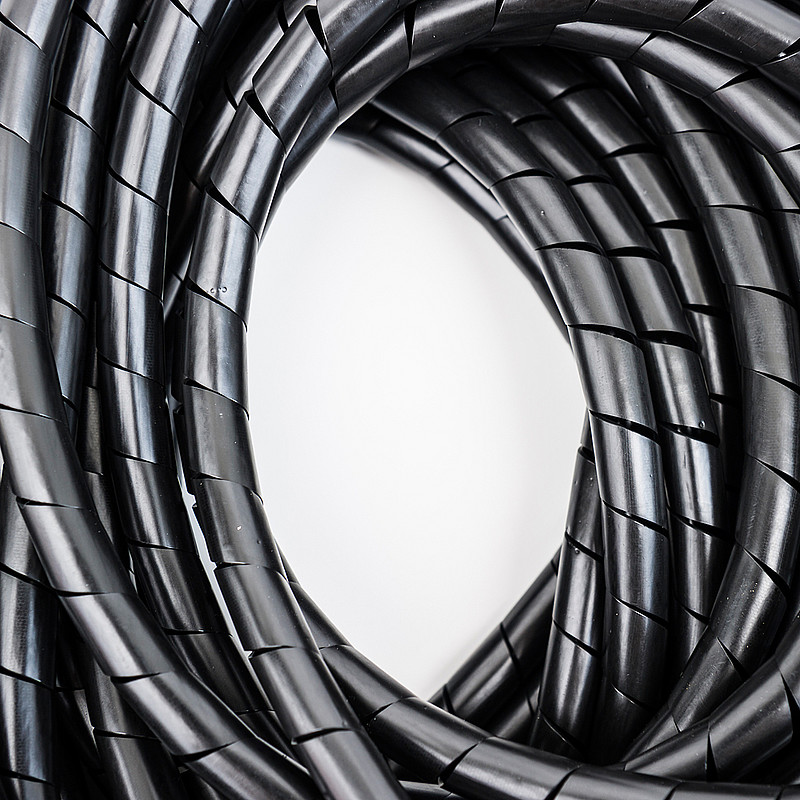

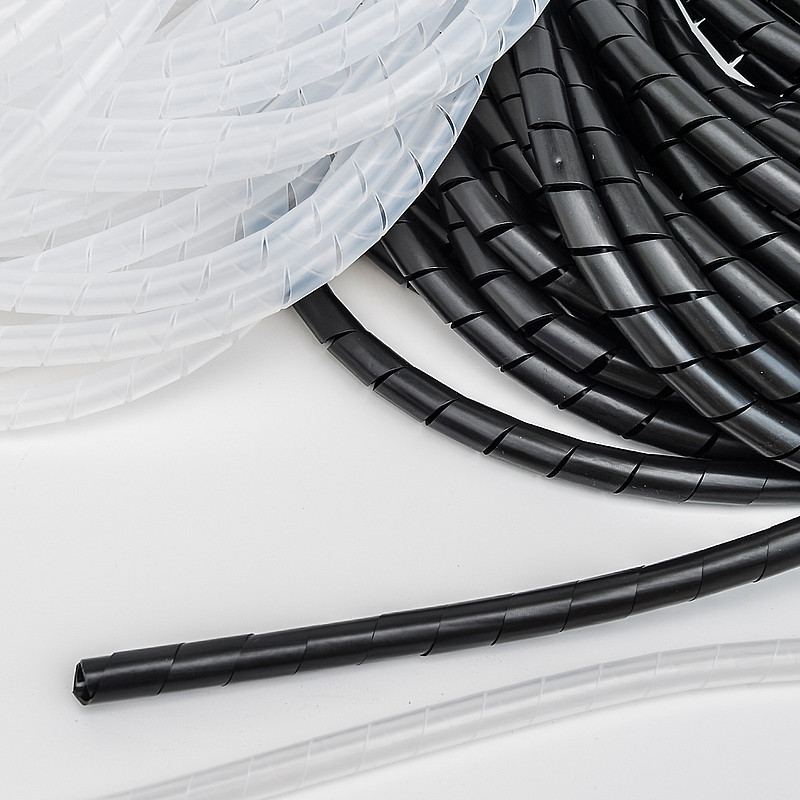

Type SPS is only available in natural and black.
Technical data AUFLEX SPS
- Polyethylene spiral sleeve
- Melting temperature +112°C
- Density: natural 0.92, black 0.95
- Tensile strength 12 MPA
- Elongation 700%
- Dielectric coefficient 2.2
- Dielectric strength 60KV/mm
- Water absorption <0.1%
| Material | Polyethylen |
| Schmelzpunkt | +112°C |
| Dichte |
|
| Reißfestigkeit | 12 MPA |
| Reißdehnung | 700,00% |
| Dielektrizitätskonstante | 2,2 |
| Durchschlagfestigkeit | 60KV/mm |
| Wasseraufnahme | <0,1% |
Available dimensions AUFLEX SPS
| Order size, type SPS | Inner dia. in mm, approx. | Wall in mm, approx. | Cut size in mm, approx. | Bundle dia. mm | Quantity in m |
|---|---|---|---|---|---|
| SPS-3 | 3,00 | 0,80 | 7,00 | 4,0 - 18,0 | 25 |
| SPS-6 | 6,00 | 0,80 | 10,00 | 7,0 - 30,0 | 25 |
| SPS-8 | 8,00 | 1,00 | 12,00 | 12,0 - 50,0 | 25 |
| SPS-10 | 10,00 | 1,00 | 14,00 | 13,0 - 70,0 | 25 |
| SPS-12 | 12,00 | 1,30 | 16,00 | 15,0 - 100,0 | 20 |
| SPS-17 | 17,00 | 1,30 | 22,00 | 20,0 - 150,0 | 25 |
