AUFLEX CableWrap
A quick and easy way to bundle cables

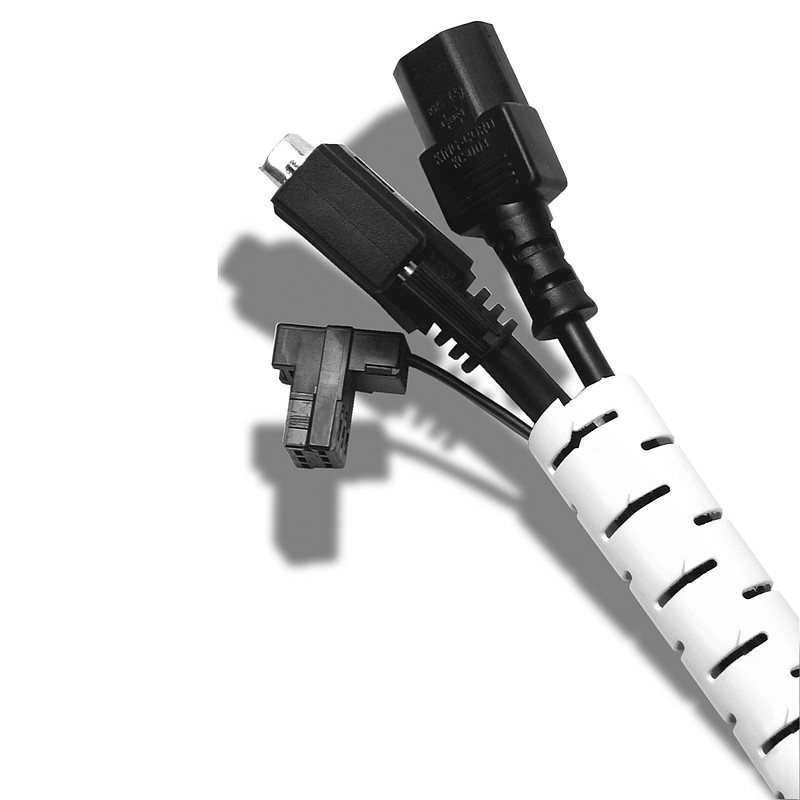

CableWrap sleeves offer a quick and easy way to bundle cables. CableWrap sleeves can save 80% of the time and costs required for established methods using spiral sleeves.
CableWrap sleeves offer a quick and easy way to bundle cables. CableWrap sleeves can save 80% of the time and costs required for established methods using spiral sleeves. The installation method is ingenious and extremely easy: the cable is laid in the tool supplied. The tool is then guided into the sleeve and the sleeve is closed using a zip system.
Available in three materials in black and white.
Technical data AUFLEX CableWrap Polypropylen
- -30 to +110°C
- Flammability: UL-94-HB self-extinguishing
- Zero halogen: yes
- UV resistant: no
- Momentarily to +140°C
| Dauereinsatztemperatur | -30 bis +110°C |
| Brennbarkeit | UL-94-HB selbstverlöschend |
| Halogenfrei | Ja |
| UV-beständig | Nein |
| Kurzzeitig | bis +140°C |
Technical data AUFLEX CableWrap Polyamid 6N
- -40°C to +85°C
- Flammability: UL-94-V2
- Zero halogen: no
- UV resistant: no
- Momentarily to +140°C
| Dauereinsatztemperatur | -40°C bis +85°C |
| Brennbarkeit | UL-94-V2 |
| Halogenfrei | Nein |
| UV-beständig | Nein |
| Kurzzeitig | bis +140°C |
Technical data AUFLEX CableWrap Polyamid V0
- Flammability: UL-94-VO
- Zero halogen: no
- UV resistant: no
- Momentarily to +140°C
| Brennbarkeit | UL-94-VO |
| Halogenfrei | Nein |
| UV-beständig | Nein |
| Kurzzeitig | bis +140°C |
Available dimensions AUFLEX CableWrap
| Order size | Maximum bundle dia. in mm | Quantity in m |
|---|---|---|
| 08 | 10,00 | 100 |
| 15 | 15,00 | 50 |
| 20 | 20,00 | 30 |
| 25 | 25,00 | 20 |
