CanuRound PET
Self-closing wraparound protective sleeve
Self-closing wraparound protective sleeve

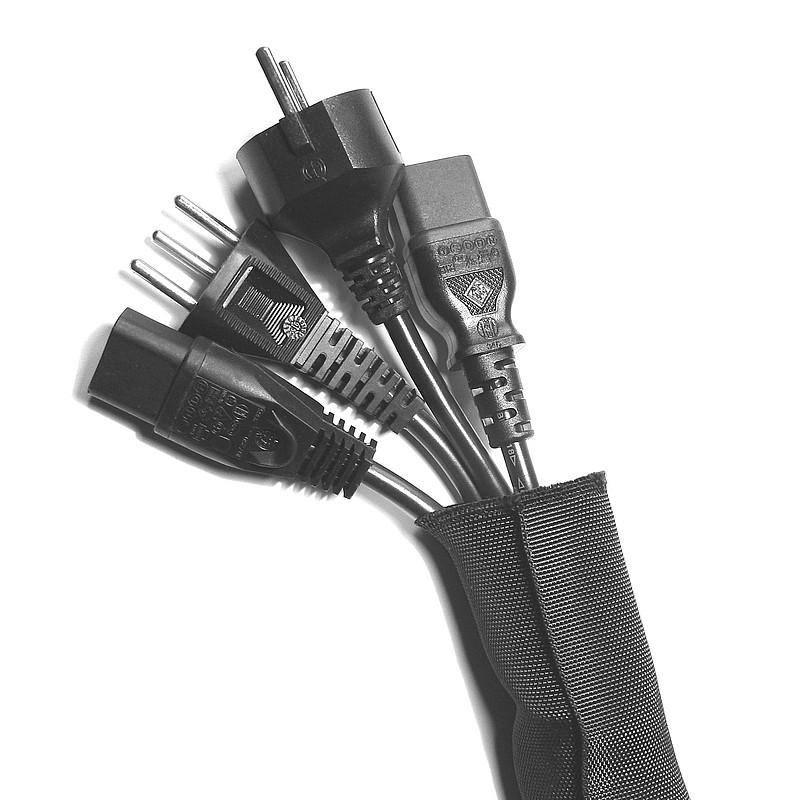

Self-closing wraparound protective sleeve for encasing and protecting wires, cables, pipes, hose and foam insulation to prevent mechanical degradation.
CanuRound PET Features
- Easy and quick installation
- Retrofitting possible
- Self-closing due to spring-back effect
- Excellent abrasion resistance
- Noise absorbing
- Attractive design
CanuRound PET Application areas
Aviation, automobile industry, motorsport, railways, military vehicles, heavy industry, electronics, tank vehicles and equipment
CanuRound PET Technical Data
| Specific gravity | DIN 65 164 part 1 and 2 1.38 g/cm3 max. |
| Yarn diameter | 0.25 mm |
| Warp yarn | 1100 Dtex |
| Abrasion resistance | DIN 53 528 > 5000 T |
| Tensile stress | 650 N/mm2 |
| Elongation | 20% |
| Cold bend test | ASTM-D 2671 method C, does not break at -50°C |
| Flammability | FMVSS 302 < 100 mm/min |
| Shrinkage in water | at 100°C 2-4% |
| Shrinkage in air | at 200°C 24-28% |
| Melting temperature | IEC 216 250°C |
| Continuous operating temperature | -50°C to +150°C |
| Resistant to chemicals | |
| Water absorption | VDE 0472 max. 0.1% |
| Extremely resistant to UV |
CanuRound PET Available dimensions
| Designation | Nominal inner diameter in mm | PU in m |
|---|---|---|
| CanuRound 5 | 5,00 | 50 |
| CanuRound 8 | 9,00 | 50 |
| CanuRound 12 | 13,00 | 50 |
| CanuRound 20 | 18,00 | 50 |
| CanuRound 25 | 25,00 | 25 |
| CanuRound 30 | 35,00 | 25 |
| CanuRound 40 | 50,00 | 25 |
- RoHS compliant
- flexible
- excellent chemical resistance
- high withstand to abrasion
