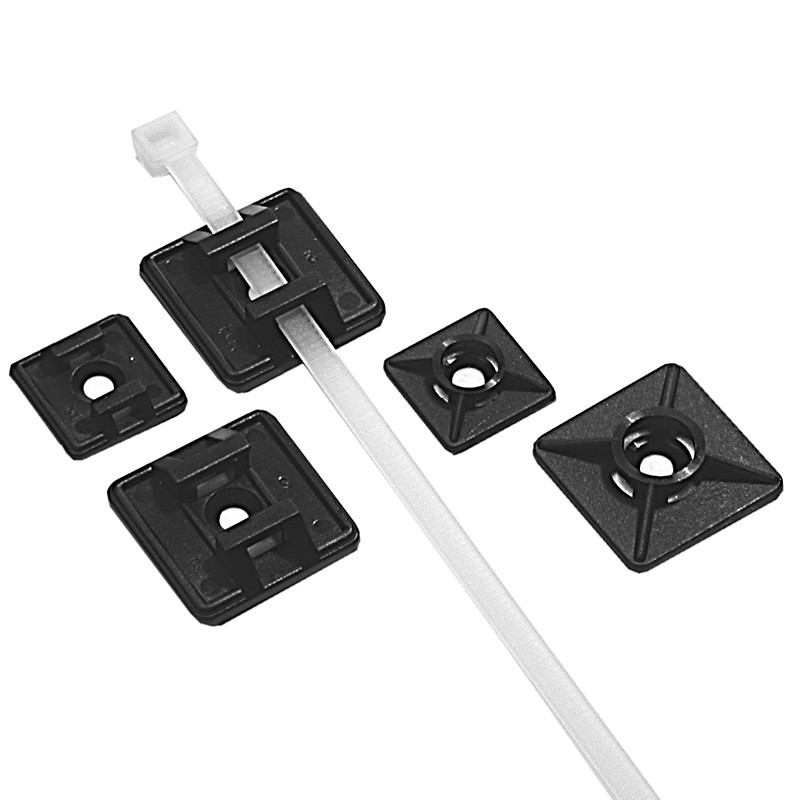

AULOC cable mounts PA 6.6
Fasten cables with cable ties to smooth, clean, grease-free surfaces
This adhesive mount allows you to fasten cables with cable ties to smooth, clean, grease-free surfaces.
This adhesive mount allows you to fasten cables with cable ties to smooth, clean, grease-free surfaces. A central hole is also provided for fastening the base with a screw. We offer this mount in two versions: double-sided and four-sided. If the mount is attached correctly, the high-quality adhesive guarantees a permanent hold
Technical data AULOC cable mounts PA 6.6
- -40 to +85°C
- Momentarily to +150°C
- Melting temperature +255°C
- Adhesive melting point +80°C
- Low flammability
- Self-extinguishing
- Zero halogen
- Black version UV resistant
| Dauereinsatztemperatur | -40 bis +85°C, kurzzeitig bis +150°C |
| Schmelzpunkt | +255°C |
| Kleberlösepunkt | ab +80°C |
| Brennbarkeit |
|
| Materialeigenschaften |
|
AULOC cable mounts PA 6.6 Available dimensions in natural and black
| Order size, type | Length x width mm | Colour | For max. cable tie widths in mm | Number of usable sides | Quantity in pack |
|---|---|---|---|---|---|
| KS-1/4S-2 | 19x19 | black | 3,60 | 2 | 100 |
| KS-2/4N-2 | 26,5x26,5 | natural | 4,80 | 2 | 100 |
| KS-2/4S-2 | 26,5x26,5 | black | 4,80 | 2 | 100 |
| KS-1/4N-4 | 19x19 | natural | 3,60 | 4 | 100 |
| KS-1/4S-4 | 19x19 | black | 3,60 | 4 | 100 |
| KS-2/4N-4 | 26,5x26,5 | natural | 4,80 | 4 | 100 |
| KS-2/4S-4 | 26,5x26,5 | black | 4,80 | 4 | 100 |
- RoHS compliant
- self-extinguishing
- highly flame retardant
- zero halogen
