PANDUIT TV105 insulation sleeves

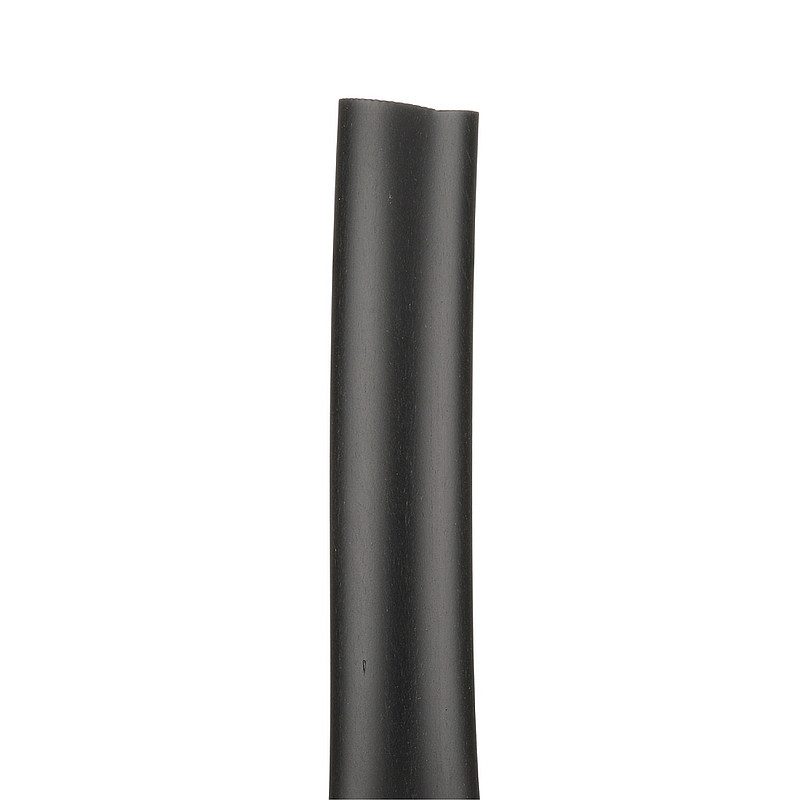

High-quality soft PVC insulation sleeve

These high-quality soft PVC insulation sleeves are certified according to UL and CSA regulations and fulfil the most demanding requirements.

These high-quality soft PVC insulation sleeves are certified according to UL and CSA regulations and fulfil the most demanding requirements.

Unfortunately since we started using materials that conform with RoHS, the range has become quite limited. Only eight of the original 35 diameters are still available.

PANDUIT TV105 Properties

  • -20 to +105°C
  • Listed for 300V and 600V
  • Flexible
  • Non shrink
  • All-purpose
  • Standard colour: black

PANDUIT TV105 Approvals

  • UL225 VW-1
  • CSA C22.2 No. 198.1 (OFT)
  • ASTM D-922 , Grade CFR
  • MIL-I-631, Type F, Shape U, Grade C, Class 1,
  • Category 1

Lieferbare Abmessungen PANDUIT TV105

Type: blackNominal sizeI-Ø (max.) mmI-Ø (min.) mmWall thickness in mmMax. volts as per ULQty in metres
TV105-12M20Y 12 AWG 2,26 2,06 0,41 300V 305
TV105-6M20Y 6 AWG 4,52 4,11 0,51 300V 305
TV105-3M20Y 3 AWG 6,32 5,82 0,51 300V 305
TV105-1M20Y 1 AWG 7,89 7,34 0,51 300V 305
TV105-.38D20Y 3/8" 10,13 9,53 0,64 600V 152,4
TV105-.50D20Y 1/2" 13,30 12,7 0,64 600V 152,4
TV105-.75TL20Y 3/4" 19,96 19,05 0,89 600V 76,2
TV105-1.0C20Y 1" 26,31 25,4 0,89 600V 30,5
Datasheet (pdf)
  • RoHS compliant
  • self-extinguishing
  • highly flame retardant
