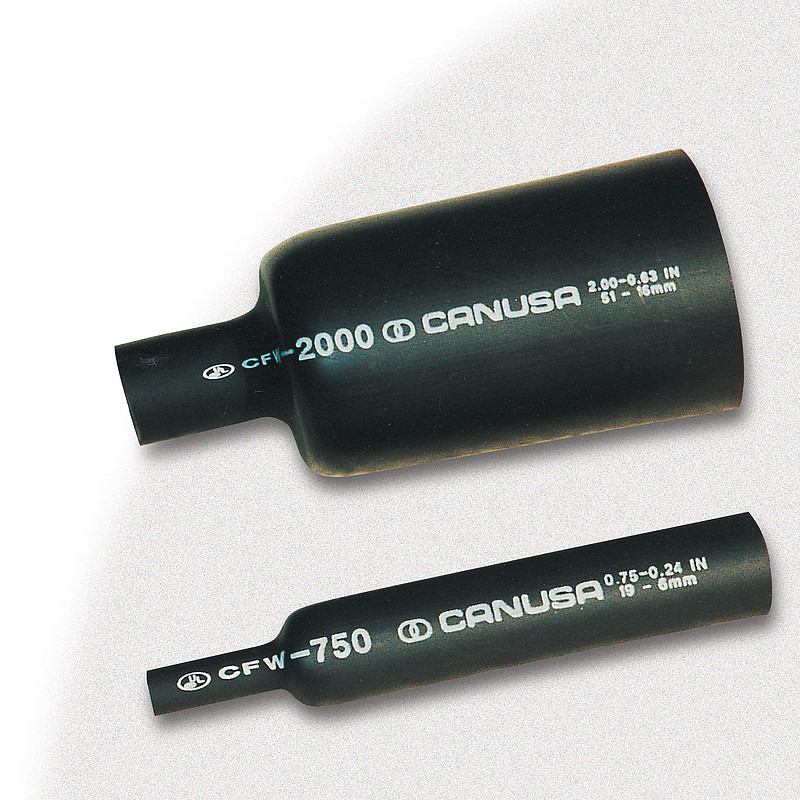

Heat shrink tubing CFW

Heavy wall heat shrink tubing

heavy wall heat shrink tubing, shrink ratio 3:1. Available with or without hot melt. UL certification

Heavy wall heat shrink tubing provides maximum reliability for insulating and protecting cable joints and terminations.

CFW Properties

  • Crosslinked polyolefin
  • Shrink ratio approx. 3:1
  • Heavy wall
  • Not flame retardant
  • With optional adhesive lining
  • Withstands severe mechanical requirements of submersible and direct burial installations
  • Rated for 600V, 90°C continuous use
  • Optional thermoplastic adhesive lining for complete environmental protection and insulation
  • Continuous operating temperature: -55°C to 110°C
  • Shrinking temperature: 120°C
  • Adhesive softening point 85 - 90°C
Datasheet (pdf)
  • RoHS compliant
  • shrink ratio 3:1
  • medium / heavy wall
  • adhesive-lined
  • exceptional weathering properties
  • high withstand to abrasion
  • high resistance to impact and abrasion
